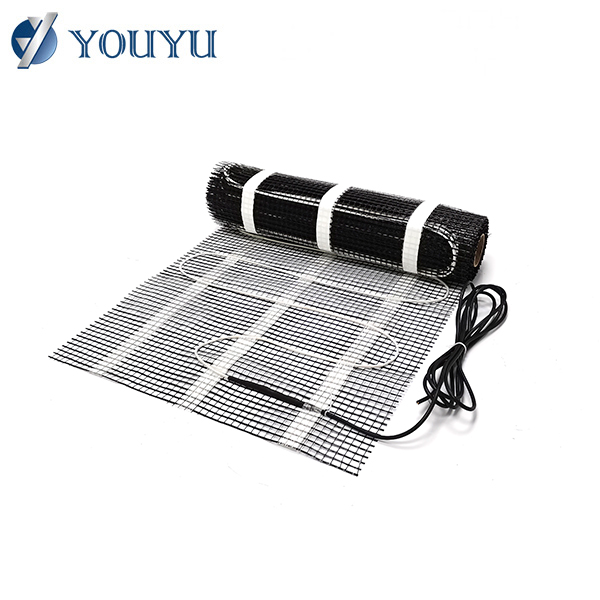

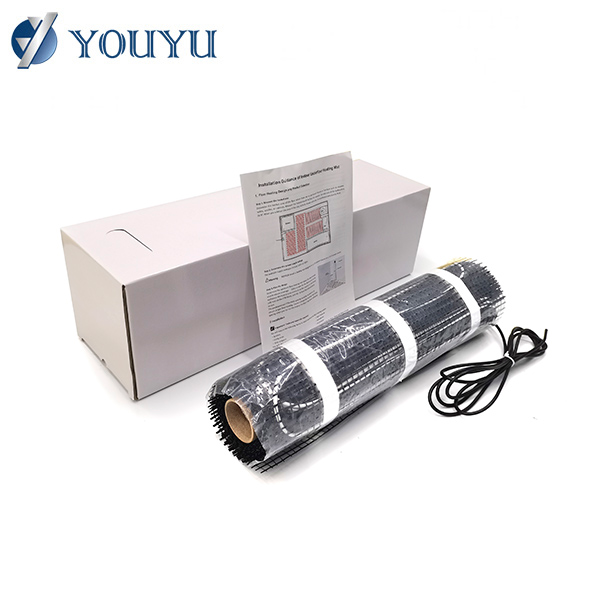

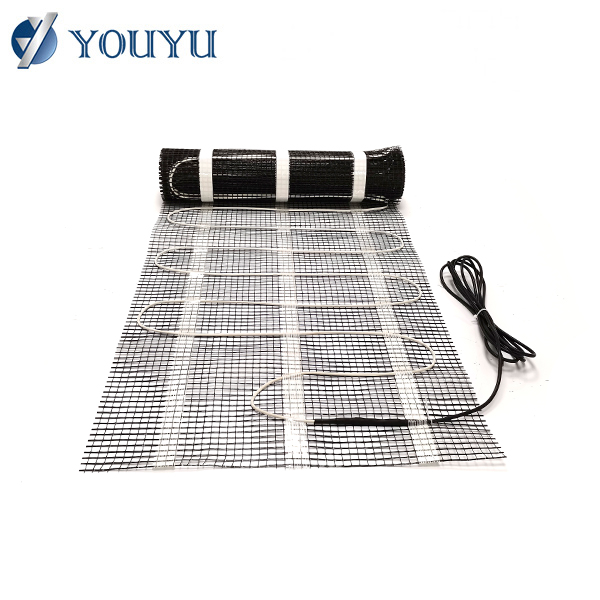

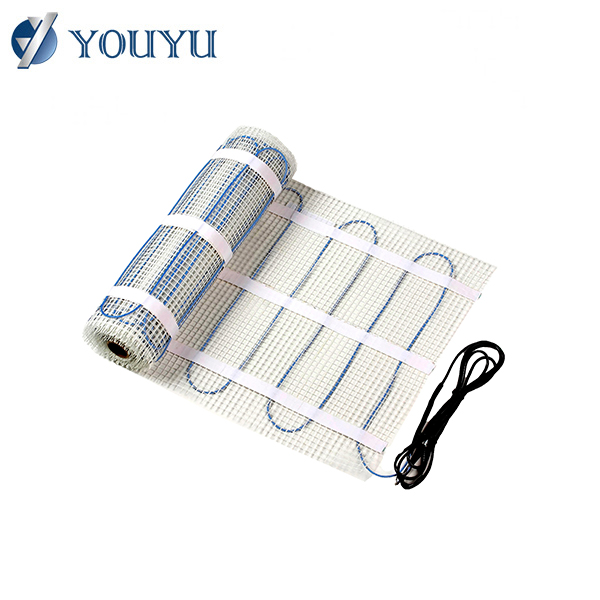

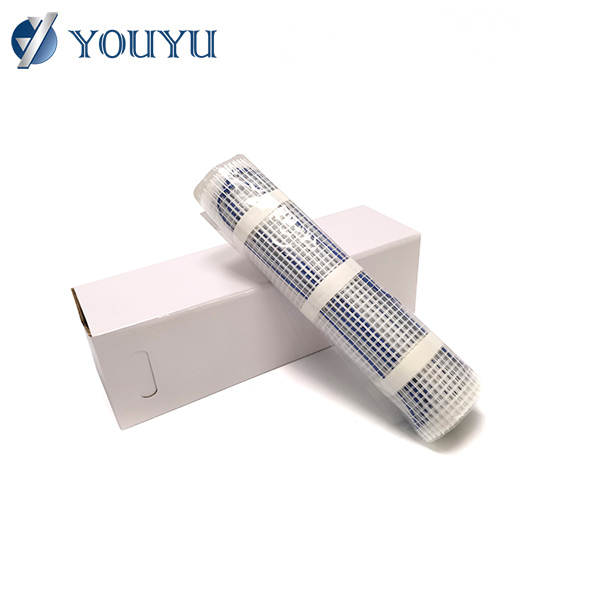

Easy Install Electric Underfloor Heating Mat Kit

Easy Install Electric Underfloor Heating Mat Kit

Item No.:

Application: Indoor Underfloor Heating
Insulation Material: FEP
Conductor Material: Nickel Alloy Wire
Jacket: PVC

Description

Underfloor Heating Mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo. It is installed with tile adhesive and has almost no effect on the ground elevation. Heating mat can also be laid directly on the original ground without the need for other treatment of the original ground. In addition, the thin,pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fast heating system is the best choice for home. Heating mat used for overall heating, comfortable heating, wall heating, Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor electric underfloor heating mat and twin conductor electric underfloor heating mat.

Installation
Step 1: Laying the insulation board on the ground, keep the ground dry before install.
Step 2: A special reflective film is placed on the insulating board to reflect heat.
Step 3: Put on the heating mat, and there is adhesive on the back of the heating mat, which can be attached to the ground material. The whole installation process is much easier and faster. The underfloor heating mat is only 3-5mm thick, and has little influence on the height of the floor. The position such as toilet or platform basin can avoid.
Step 4: Uniformly covered with concrete materials, the thickness of the cover shall refer to the heating standards, and the construction can be carried out with professional tools.
Step 5: Install the thermostat and finally place floor or ceramic tile and other floor decoration materials.

110V 150W/M2 Underfloor Heating Mat

Model	Mat Size	Voltage	Output Power	Power Cable
1m2	0.5*2m	110V	150W	2-3m
1.5m2	0.5*3m	110V	225W	2-3m
2m2	0.5*4m	110V	300W	2-3m
2.5m2	0.5*5m	110V	375W	2-3m
3m2	0.5*6m	110V	450W	2-3m
3.5m2	0.5*7m	110V	525W	2-3m
4m2	0.5*8m	110V	600W	2-3m
4.5m2	0.5*9m	110V	675W	2-3m
5m2	0.5*10m	110V	750W	2-3m
6m2	0.5*12m	110V	900W	2-3m

220V 150W/M2 Underfloor Heating Mat

Model	Mat Size	Voltage	Output Power	Power Cable
1m2	0.5*2m	220V	150W	2-3m
1.5m2	0.5*3m	220V	225W	2-3m
2m2	0.5*4m	220V	300W	2-3m
2.5m2	0.5*5m	220V	375W	2-3m
3m2	0.5*6m	220V	450W	2-3m
3.5m2	0.5*7m	220V	525W	2-3m
4m2	0.5*8m	220V	600W	2-3m
4.5m2	0.5*9m	220V	675W	2-3m
5m2	0.5*10m	220V	750W	2-3m
6m2	0.5*12m	220V	900W	2-3m
7m2	0.5*14m	220V	1050W	2-3m
8m2	0.5*16m	220V	1200W	2-3m
9m2	0.5*18m	220V	1350W	2-3m
10m2	0.5*20m	220V	1500W	2-3m
11m2	0.5*22m	220V	1650W	2-3m
12m2	0.5*24m	220V	1800W	2-3m
