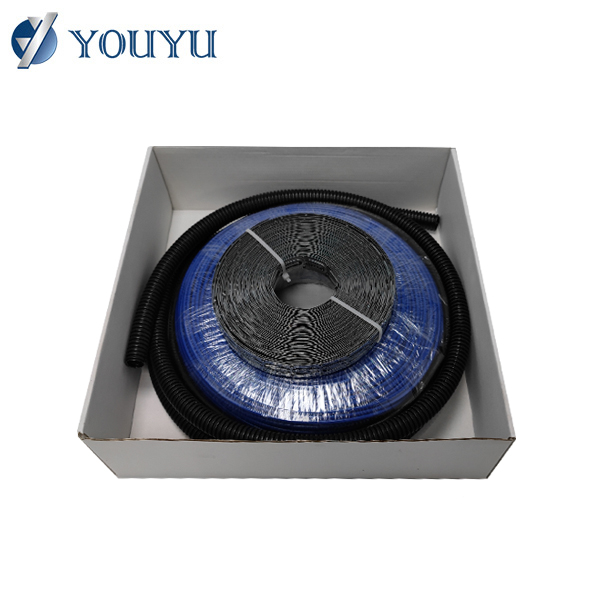

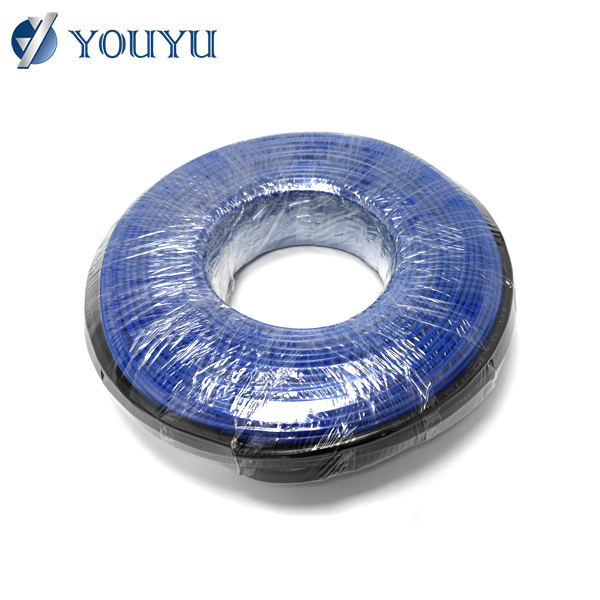

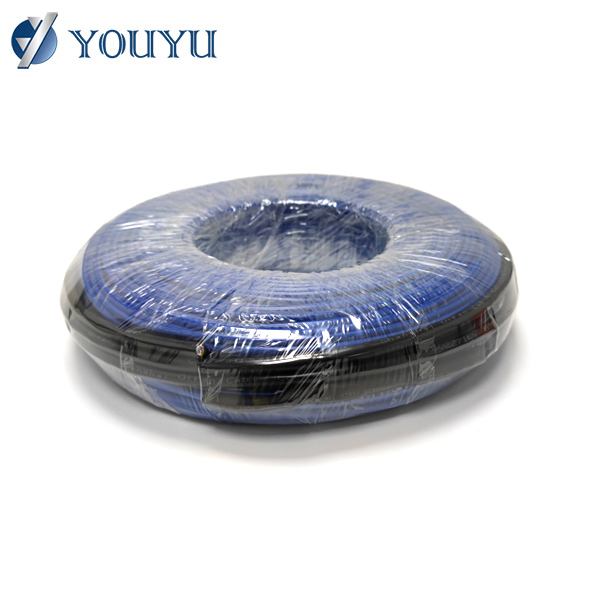

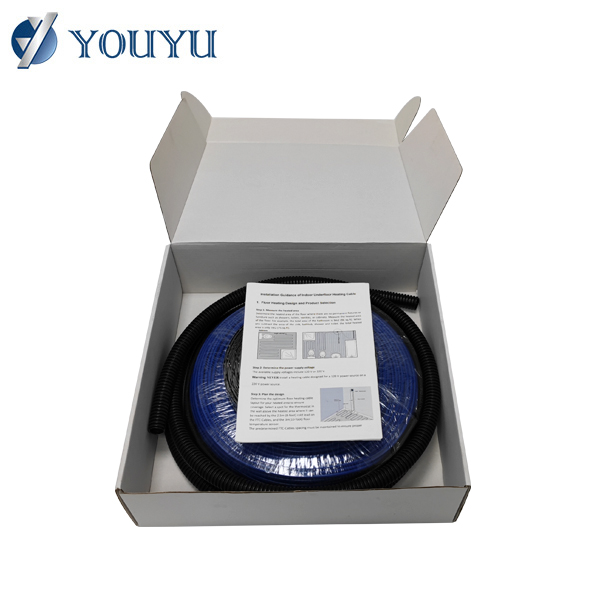

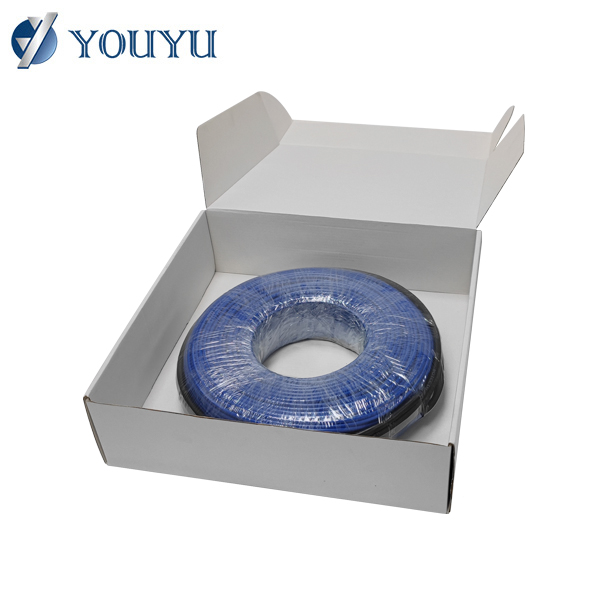

Vegetation Soil Temperature Maintenance with Single Conduction Heating Cable

Item No.:
Application: Anti-Freeze, De-icing, Snow Melting
Insulation Material: XLPE/FEP
Conductor Material: Nickel-Copper Alloy Heating Wire
Jacket: PVC
Description
Description
There is only one heating core inside the single conductor heating cable. When wiring, both ends of the heating cable must be connected to the power supply. After the heating cable is connected to the power supply, the heating wire is heated and runs between 40°C and 65°C.

Working Principle
The inner core of the heating cable is composed of cold wire and hot wire. The outer core is composed of an insulating layer, a grounding layer, a shielding layer and an outer jacket. After the heating cable is energized, the hot wire heats up and runs between 40 and 65 degrees Celsius. The heating cable embedded in the filling layer transmits the heat energy through the way of heat conduction (convection) and emits the far infrared radiation of 8-13um.

Product Advantage
1. Comfortable, healthy, clean, long life and no maintenance.
2. Spacious, simple, warm, damp proof and mildew proof.
3. Safety, efficiency, environmental protection, energy saving and low cost.
4. There is no leakage and short circuit in heating by heating cable.

Scope of Application
1. Road snow melting
2. Pipe insulation
3. Soil heating system
4. Roofing melting snow and melting ice


Technical Data
Cable Construction Single Conductor Outer Jacket PVC
Rated Voltage 220V (Customizable) Max. Surface Temp 65°C
Output Power 18.5W/M (Customizable) Cold Lead Length 2M
Cable Diameter 6.5±0.5mm Conductor Alloy Heating Wire
Conductor Insulation XLPE Shielding Aluminum Foil


Model Number Power (W) Voltage (V) Length (M) W/M Resistance (ohm)
FTS-300-18.5-1  300 220 16.2 18.5 161.3
FTS-400-18.5-1 400 220 21.6 18.5 121.0
FTS-500-18.5-1 500 220 27 18.5 96.8
FTS-600-18.5-1 600 220 32.4 18.5 80.7
FTS-700-18.5-1 700 220 37.8 18.5 69.1
FTS-850-18.5-1 850 220 45.9 18.5 56.9
FTS-1000-18.5-1 1000 220 54.1 18.5 48.4
FTS-1200-18.5-1 1200 220 64.9 18.5 40.3
FTS-1400-18.5-1 1400 220 75.7 18.5 34.6
FTS-1600-18.5-1 1600 220 86.5 18.5 30.3
FTS-1800-18.5-1 1800 220 97.2 18.5 26.9
FTS-2000-18.5-1 2000 220 108.1 18.5 24.2
FTS-2200-18.5-1 2200 220 118.9 18.5 22.0
FTS-2400-18.5-1 2400 220 129.7 18.5 20.2
FTS-2600-18.5-1 2600 220 140.5 18.5 18.6
FTS-2800-18.5-1 2800 220 151.4 18.5 17.3
FTS-3000-18.5-1 3000 220 162 18.5 16.1
FTS-3200-18.5-1  3200 220 173 18.5 14.7
