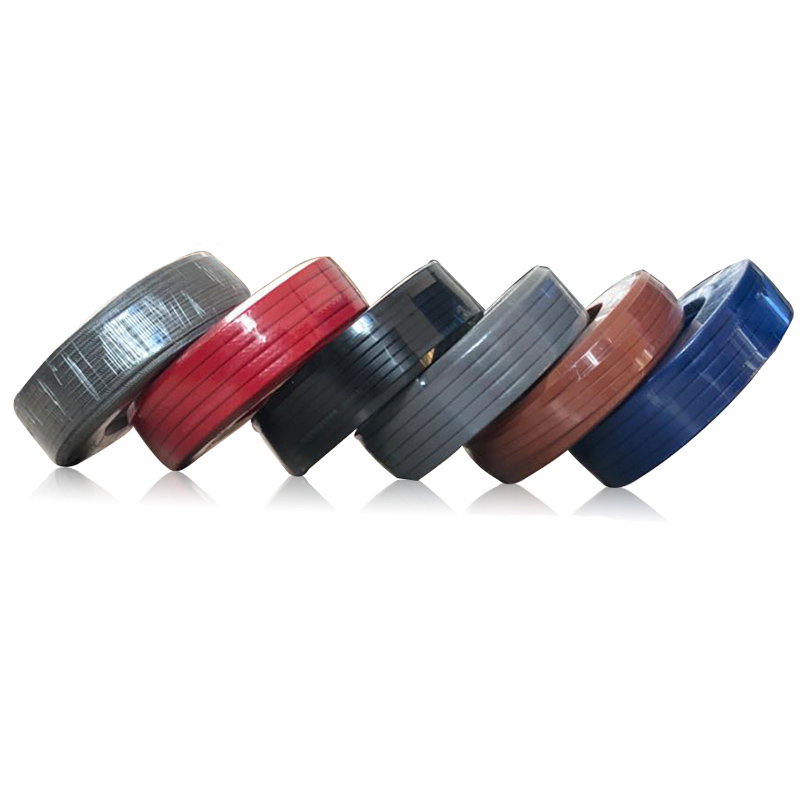

Self-Regulating Heat Tracing Cables Energy-Efficient Freeze Protection & Process Heating

Item No.:
Application: Pipe Heating, Frost protection, Snow Melting and De-icing,
Insulation Material: Polyolefin, PE, FEP
Conductor Material: Tinned Copper
Jacket: Polyolefin, PE, FEP
Description

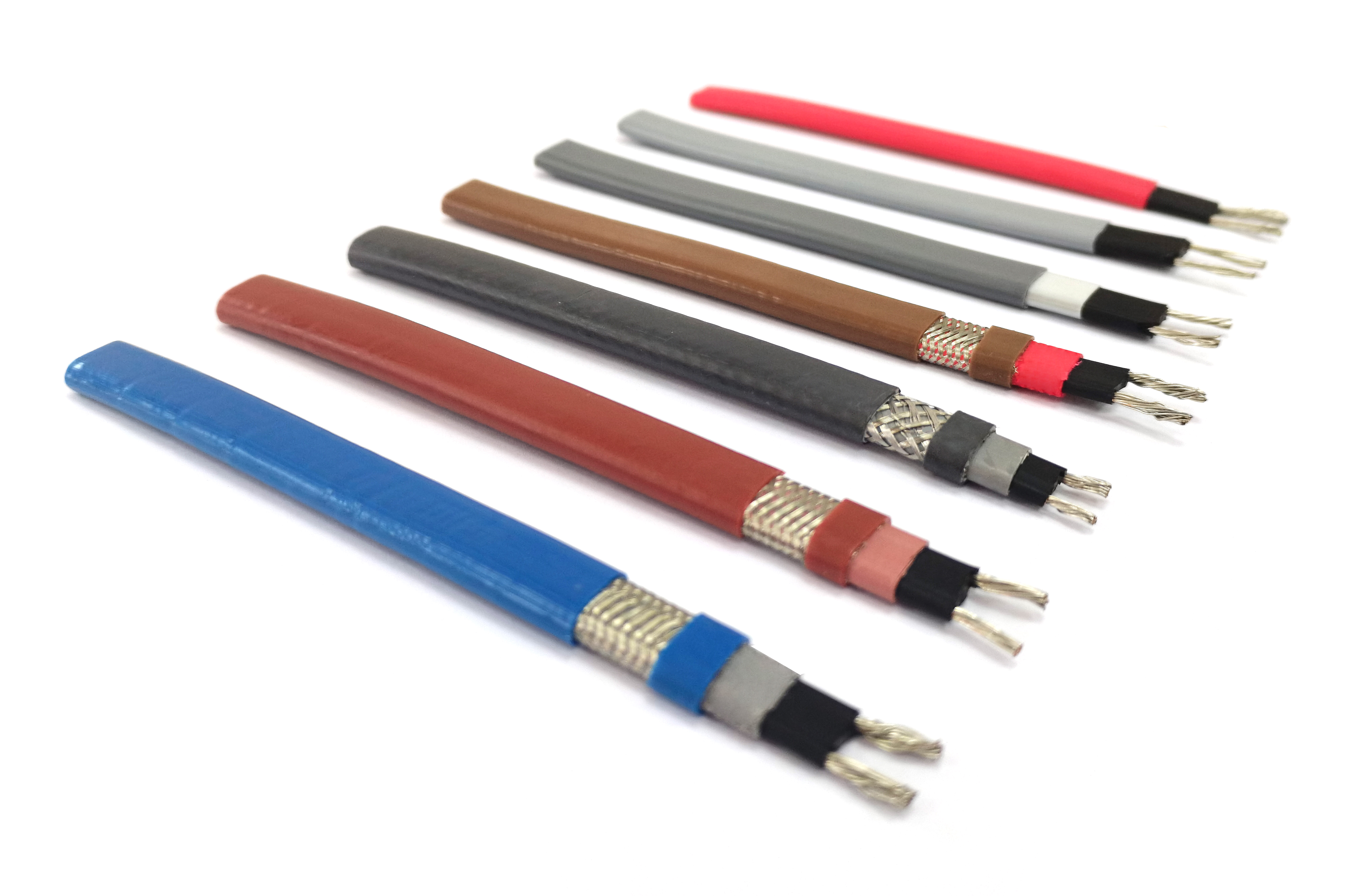

Self-regulating heating cable, the resistivity of its heating element has a very high "PTC" (Positive Temperature Coefficient) and is connected in parallel with each other. The characteristics are: it can automatically limit the heating temperature, and automatically adjust the output power according to the temperature of the heated object without any additional equipment; it can be shortened arbitrarily or connected to a certain length for use, and allows multiple overlapping without burnout concerns. These characteristics make Self-regulating heating cable have the advantages of preventing overheating, easy operation and maintenance, and saving electric energy. It is suitable for temperature control, constant temperature antifreeze and heat preservation of pipelines, equipment and containers, especially when there are materials that are easy to decompose, deteriorate, crystallize, condense and freeze. It is widely used in the fields of petroleum, chemical industry, electric power, metallurgy, light industry, food, refrigeration, construction, gas, agricultural and sideline products production and processing.

Self-regulating heating cables are classified according to power per meter, voltage, maintenance temperature, and maximum withstand temperature: low-temperature series, medium-temperature series, and high-temperature series, and can be customized according to needs.

Water pipe heating cables with power cords and plugs, soil heating cables, Snow melting and ice melting heating cables and other diversified products, please contact customer service for more .
Type Power
(W/M, at 10℃)
Maximum Tolerance Temperature Maximum Maintain Temperature
Minimum
Installation Temperature


Maximum Usage Length
(based on 110V/220V)
Low
Temperature

10W/M
15W/M
25W/M
35W/M


105℃ 65℃±5℃ -40℃ 50m/100m
Medium Temperature
35W/M
45W/M
50W/M
60W/M


135℃ 105℃±5℃ -40℃ 50m/100m

High
Temperature


50W/M
60W/M
200℃ 125℃±5℃ -40℃ 50m/100m


Welcome to Anhui Youyu Electric Heating Equipment Co., Ltd., a professional manufacturer and solution provider specializing in high-quality electric heating products.We understand that every project has unique requirements. That's why we offer flexible ODM (Original Design Manufacturing) and OEM (Original Equipment Manufacturing) services. Whether you need a customized heating solution from the ground up or want to brand our proven products with your label, our experienced engineering and production teams are here to support you. From concept and design to prototyping and final manufacturing, we ensure your specifications are met with precision and quality.

At Anhui Youyu, we are committed to providing not just products, but complete thermal solutions that bring comfort, efficiency, and value. Let us help you heat things up—the smart way.
Contact us today to discuss your project requirements or to request a custom quote. Let's build the perfect heating solution together.
